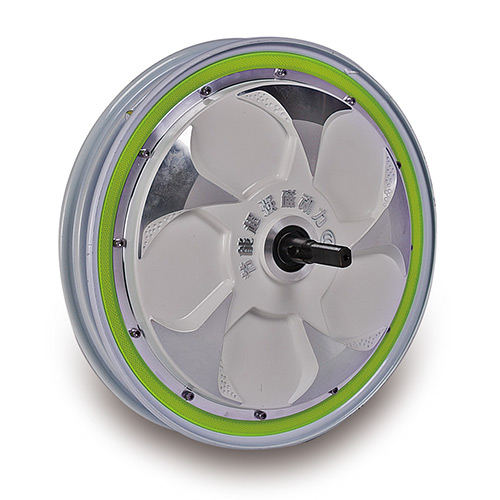

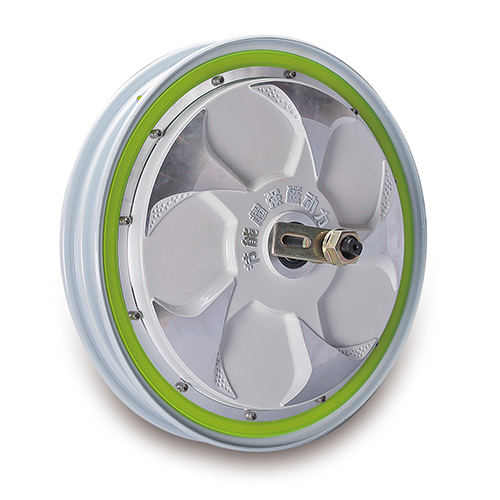

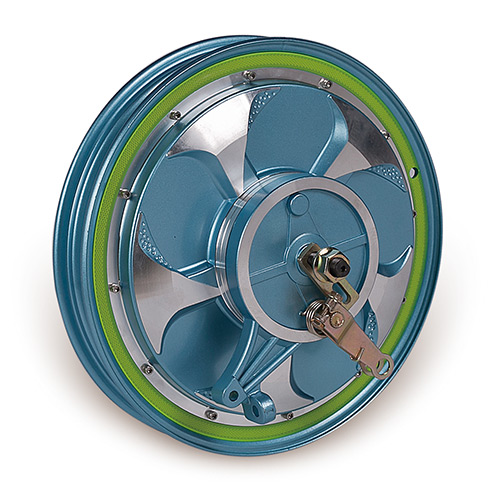

| Motor No. | AMK260-1001-C | |||||
| Rate Power (W) | 350W-1500W | |||||
| Rated Voltage (V) | 24V-80V | |||||
| Rated Torque (N.m) | 7N.m-28N.m | |||||
| Efficiency | ≥86% | |||||
| Rated Speed (RPM) | 200RPM-1000RPM | |||||
| No load Speed (RPM) | 250RPM-1200RPM | |||||
| Rated Current (A) | 7A-25A | |||||
| No load Current(A) | 1.0A-3.0A | |||||
| Size | 16" | |||||
| Weight（kg) | 7.5kg | |||||
| Brake Type | Drum Brake/Disc Brake | |||||
| Loading (kg) | 280kg | |||||
| Noise | ≤60dB | |||||
| Specifications | Large Torque,High efficiency | |||||
| Application | E-bike,E-Scooter etc. | |||||
Established in 2006, is a technology institution and manufacturing enterprise specialized in researching and developing electromotor and controller of electric vehicles. Covering a floor space of 36,000m2 and having an annual production capacity of 3,500,000 sets, the company has developed into a leading enterprise in Chinese industry of electric vehicle electromotor since its foundation.
